1GDE4C1294F512298
512298
   Check if this GMC TC4500 is still available

Used 2004 GMC TC4500 Regular Cab|121,785 Miles|Rear Wheel Drive

White Exterior | 8 Cyl. |Automatic Transmission
Internet Price$19,999
Share

Like this GMC TC4500 or know someone who might like it? Share it!

Email PRINT BROCHURE

Standard Equipments on 2004 GMC TC4500 Regular Cab in Waterbury, CT

  • ABS
  • 4-Wheel Disc Brakes
  • 8 Cylinder Engine
  • Power Outlet
  • Bucket Seats
  • Diesel Fuel
  • Intermittent Wipers
  • Power Steering
  • Rear Wheel Drive
  • Running Boards/Side Steps
  • Tires - Front All-Season
  • Tires - Rear All-Season
  • Air cleaner, dry type
  • Alternator, AD230 Delco Remy 105-amp maximum (N/A with YW2 wrecker package)
  • Battery, single, 600CCA Delphi Freedom 12V - 115-minute reserve capacity @ 27 degrees C, 600 CCA @ -18 degrees C grounded directly to starter, (Requires LQR gasoline engine) (N/A with ANQ snow plow prep or YW2 wrecker packages)
  • Brakes, front, power, 4-wheel disc, 4 channel ABS 2-piston - (See Front Axle options for more detail)
  • Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
  • Cooling, anti-freeze protection temperature of -40 degrees F (-40 degrees C)
  • Engine, Vortec 8100MD gasoline V8, 225 hp (167 kw) @ 3600 rpm and 350 lb-ft torque (473 N-m) @ 1,200 rpm. - Maximum engine speed 5000 rpm
  • Exaust, single horizontal - passenger side mounted inside frame rail, stainless-steel with gasoline engines, aluminized steel with diesel engines
  • Frame, 6mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
  • Front axle, 6250 lbs. (2835 kg) capacity - I-beam Wide-trac. Up to 54 degree turn angle, (Includes 2-piston brake apply calipers) (Includes C7P 16,000 lbs. (7257 kg) GVWR)
  • Front shock absorber, diameter 1.375" (35mm)
  • Front stabilizer bar, 2" x 2" square tube (5cm x 5cm)
  • Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer)
  • Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
  • Front tire size, 225/70R19.5F - 7280 lbs. (3802 kg) capacity, (With R4A Goodyear or R4L Michelin, requires R3C front premium highway tread; with R4N Bridgestone requires R3M front all season tread)
  • Front tread, premium, highway
  • Front wheels, 19.5" x 6.0" (49.5 cm x 15.2 cm), steel disc - 8-hole. 7280 lbs. (3302 kg) capacity
  • Fuel sender assembly. Robust fuel pump
  • Fuel tank, single, 25-gallon (95L) fuel capacity - gas and diesel located midship between the frame rails, with fuel fill neck located over top of frame rail (this option uses the mid-frame tank included in the NG6 dual tank option), (Included in YW2 Wrecker Package) (Standard on 60" (152.4 cm) CA), (Optional on all other CA's) MINIMUM OVERHANG = 3
  • GVWR, 16,000 lbs. (7257 kg) capacity - GCVWR limited to 24,000 lb. (10,866 kg) (Requires FR5 6250 lbs. (2835 kg) front axle)
  • Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: may delete transmission PTO gear.)
  • Rear axle ratio, 4.88:1 (Requires GL4 rear axle)
  • Rear axle, single speed, 11,000 lbs. (4990 kg) capacity - full floating, Includes 2-piston brake applied calipers
  • Rear shock absorber, 1.375" (35mm)
  • Rear suspension, multi-leaf, 11,000 lbs. (4990 kg) capacity
  • Rear tire manufacturer code, Goodyear
  • Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread; with S4N Bridgestone requires S3M rear all season tread)
  • Rear tread, premium, highway
  • Rear wheel drive
  • Rear wheels, 19.5" x 6.0" (49.5 cm x 15.2 cm), steel disc - 8-hole. 14,560 lbs (6604 kg) capacity
  • Road Speed Governor, controlled by the speed rating of the tires ordered which will be less than or equal to 85 mph (137 kph) - 60" (152.4 cm) CA with manual transmission and 4.88 rear axle are speed rated to 80 mph (129 kph)
  • Tethered fuel cap
  • Transmission, Allison 1000 Series automatic - with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift and Parking pawl. Base model does not include power take-off gear, to include PTO gear please order with RPO "PTO". Includes transmission-oil cooler located inside radiator and an air-to-oil auxiliary cooler. PTO mounting location on
  • Wheelbase, 128" (325.1 cm) - with 60" (152.4 cm) CA and 100" (254 cm) CE. Includes a 6 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63 (Requires KYW 75 mph (120 kph) road speed governor with RPO options M74 automatic transmission and GL8 13,500 lbs. (6123 kg) capacity rear axle)
  • Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
  • Exterior roof drip moldings
  • Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
  • Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5cm x 17.8 cm) with 6" x 7" (15.2cm x 17.8cm) convex section
  • Paint scheme, solid, lower color, Summit White
  • Paint scheme, solid, upper color, Summit White
  • Provisions for mounting front license plate
  • Steps under cab doors
  • Windows, Solar-Ray tinted - all windows
  • Windshield wipers, intermittent, with pulse washers
  • Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
  • Cloth headliner
  • Coat hooks (2) located on cab back panel
  • Electronic engine hour meter
  • Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
  • Gauges, low oil pressure and coolant level, high coolant and engine oil temperature
  • Headlamp warning buzzer
  • Interior trim, Very Dark Pewter (Requires 69U Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
  • Molded vinyl floor covering
  • Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories
  • Radio, Delco AM-FM stereo radio - with coaxial speakers in all door panels
  • Seat belt warning indicator
  • Seat trim, vinyl, Very Dark Pewter
  • Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
  • Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
  • Steering wheel, simulated leather
  • Steering, power - ZF variable ratio power
  • Sunshades, passenger side and driver side, vinyl-covered
  • Tachometer with automatic and manual transmissions
  • Trim console - located next to driver's seat, removable ashtray cup and two cupholder
  • Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
  • Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
  • Warning tone, key-in-ignition
  • 4-wheel disc, 4-channel ABS
  • Air bags, Supplemental Inflatable Restraints not included.
  • This vehicle does not include any air bags

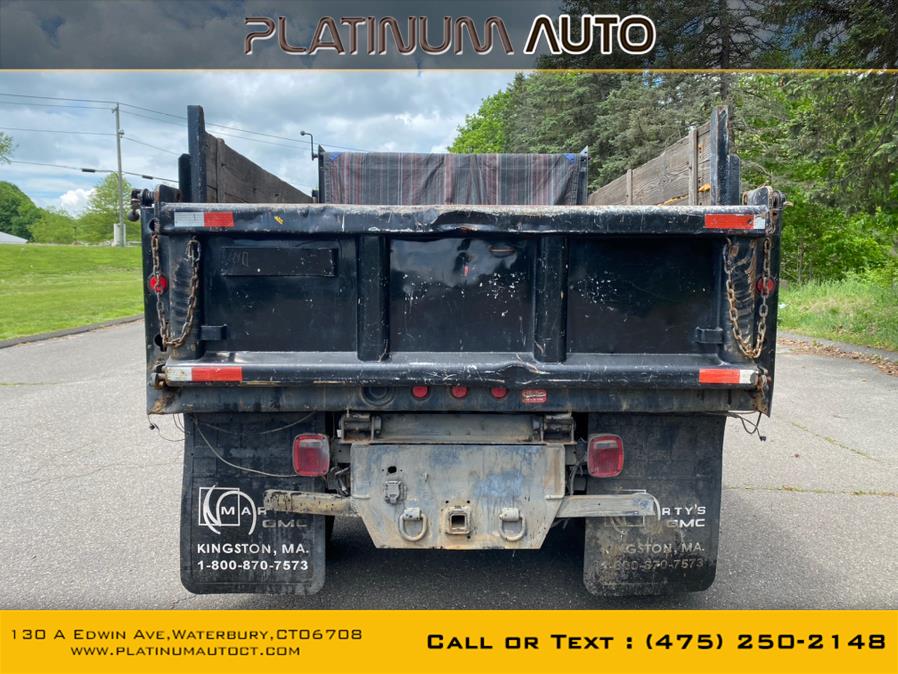

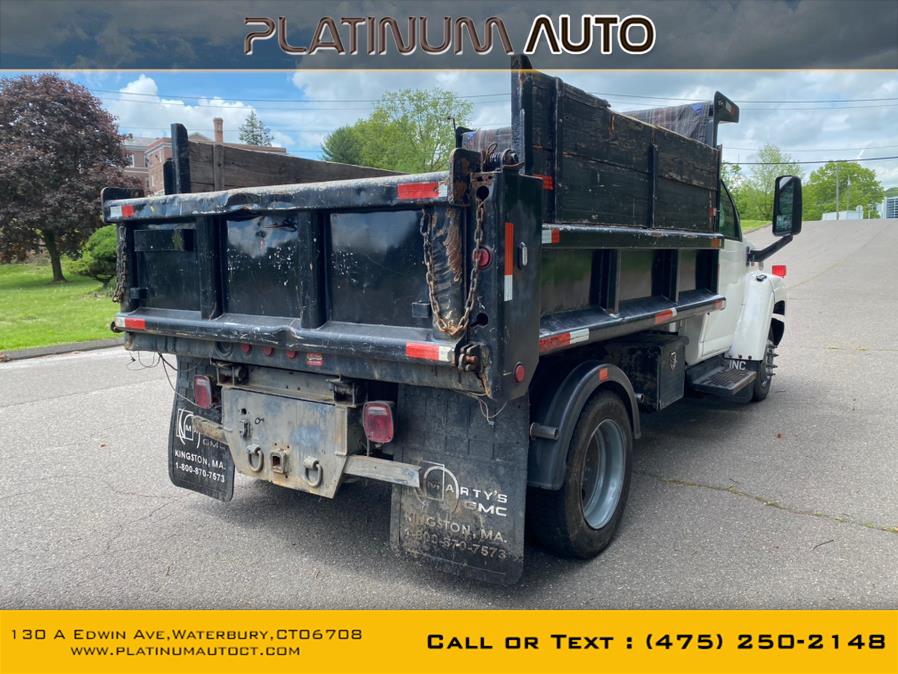

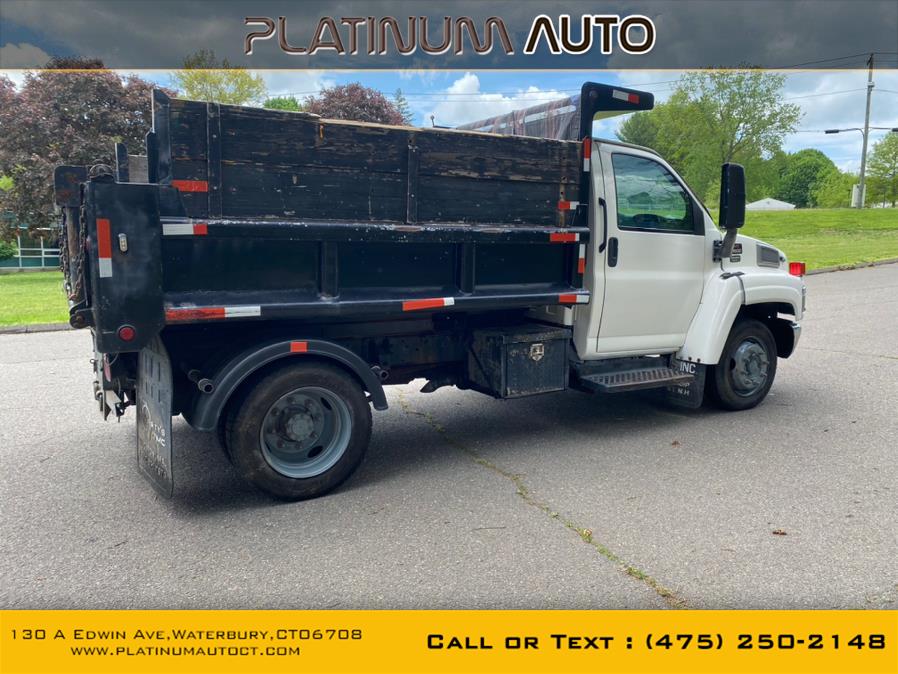

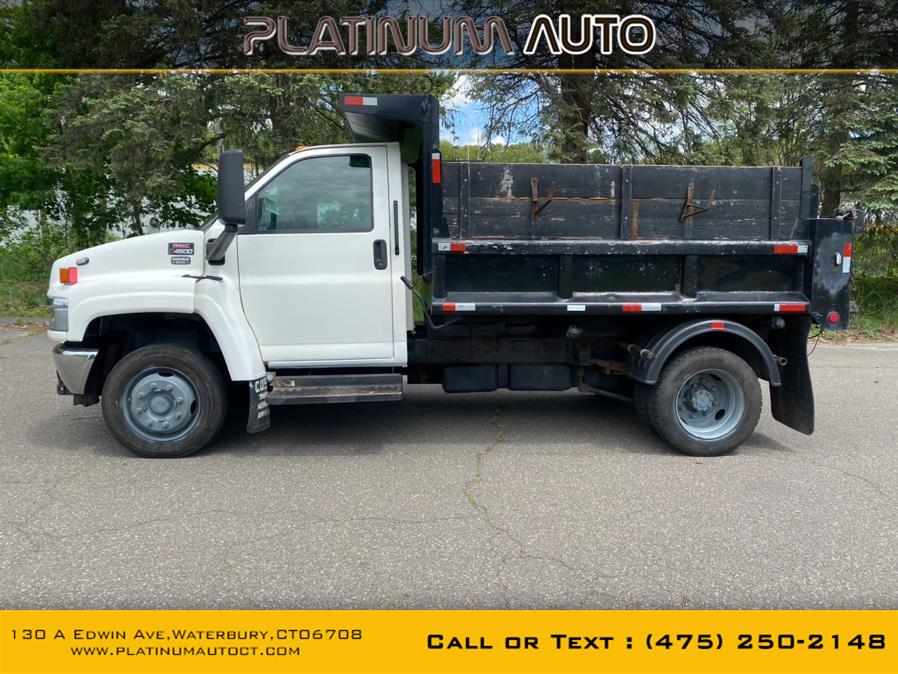

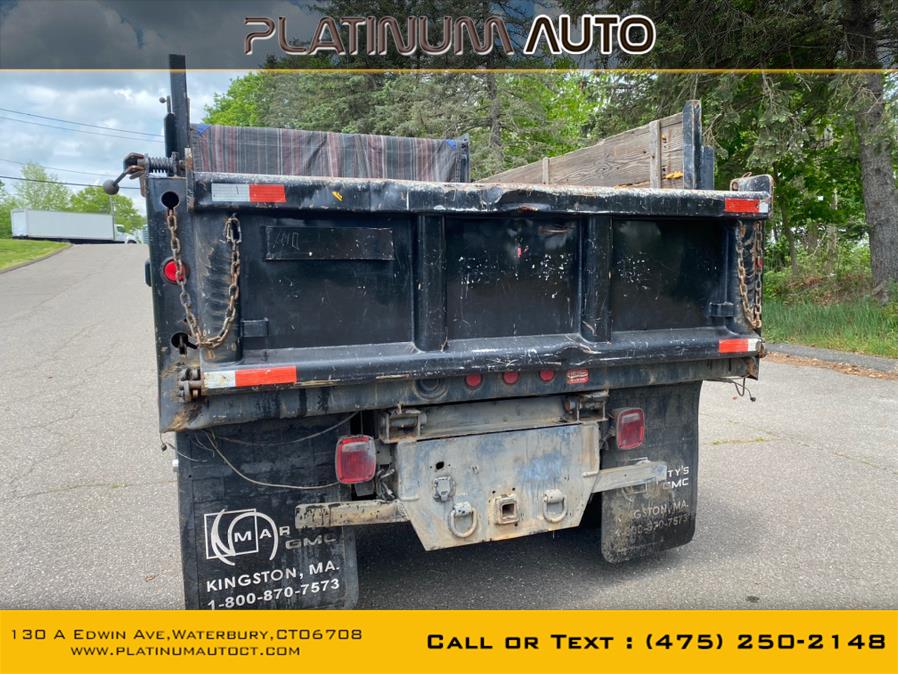

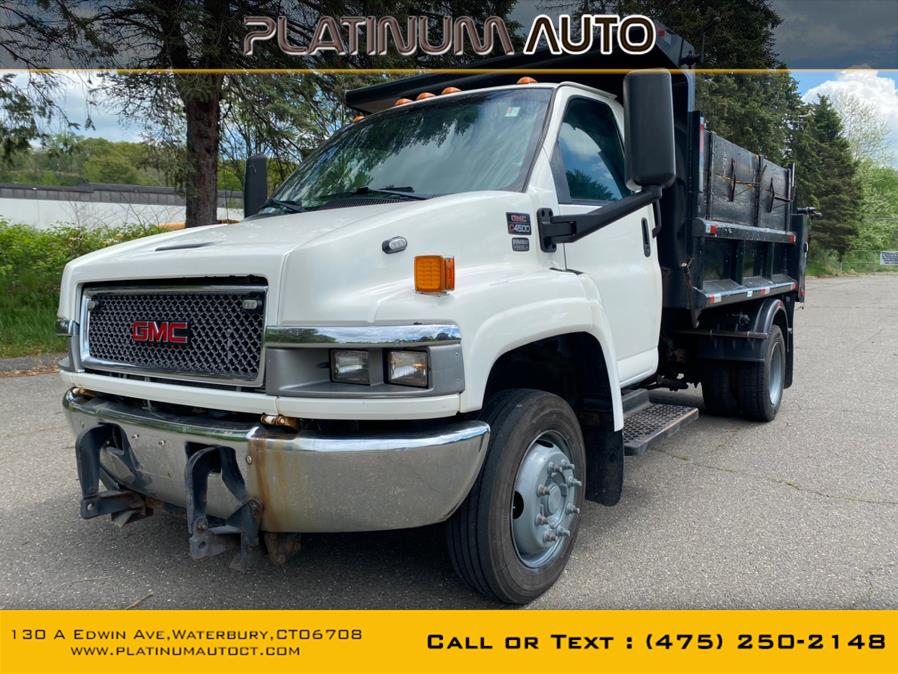

Pictures of used 2004 GMC TC4500 Regular Cab in Waterbury, CT
